Robust & Secure Voice/Data Terminal for HF/VHF/UHF Transceiver RI 5000

Download RI-5000 - user manual (380 KB)

Connect with Any Type of Analog & Digital Transceiver

• Provide reliable communication under extremely severe radio channel conditions, where strong gauss noise, large fading, multi-path delay and strong interference are coexisting, based on the advanced techniques such as unique error correction technique and spread spectrum communication
• Embedded powerful Data/Voice Encryption module based on public key cryptology
• Keep good voice quality with very low bit rate Voice Compression algorithm (VLBRVC)

Connect with IC-706 and IC-7000 Analog Transceiver of ICOM series or any other HF VHF UHF Transceiver

• Provide ECCM communication with advanced hopping control

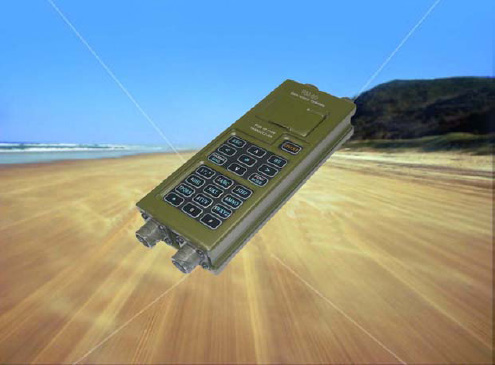

HF/VHF/UHF Data/Voice Terminal for Transceiver

Many techniques have been proposed and developed for reliable communication, but modern communication technology has still many problems in providing reliable communication in very difficult radio channel such as HF channel.

RI-5000 can be fitted to any type of analog or digital transceivers with its advanced technologies such as unique data error correction, spread spectrum, powerful synchronization and newly developed VLBRVC technology. It provides perfect error-free real time communication in any HF Channel even under very strong gauss noise, large fading and multi-path delay and strong electronic jamming.

Hopping control communication with IC-706 and IC-7000 analog transceivers of ICOM series is a standard, making them most advanced ECCM one. This function can be customized according to the demand of the User.

And its embedded Communication Security (COMSEC) module which can be modified by the User at his will excels in high level of Data/Voice Encryption no one has ever imagined.

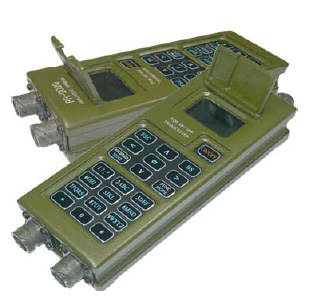

RI-5000 is very easy to connect to any type of existing analog and digital transceivers with its plug-in to microphone jack and provides most excellent and secured communication to military and government at HF band.

Anti-jamming

The embedded unique error correction technology(FEC2) recovers 100% of data with the multiple burst error of up to 75% where there exist very strong gauss noise, large fading and multi-path delay and strong spectrum electronic jamming with its time factor reaching nearly 90%.

The advanced spread spectrum technology (SST) also provides satisfactory secure communication in gauss noise of – 16dB or, CW jamming or cross-interference of –5dB.

Performance based on Channel condition and SNR

Data rate (bps)	Channel Type	Multi path (ms)	Fading (Hz)	SNR (dB)	BER
75	AWGN	-	-	-9	1.00E-04
75	CCIR Good	0.5	0.1	-7	1.00E-04
75	CCIR Moderate	1.0	0.5	-4	1.00E-04
75	CCIR Poor	2.0	1.0	1	1.00E-04
75		10	2	-3	1.00E-04
75		10	20	-3	1.00E-04
75		10	50	-1	1.00E-04

Lowest SNR for ARQ success

Channel Type	SNR (dB)	Remark
AWGN	-16
CCIR Good	-16
CCIR Moderate	-16
CCIR Poor	-12
CCIR Flutter	-9

Very Low Bit Rate Voice Compression (VLBRVC)

Recently developed VLBRVC has better voice quality than any other technology can provide. Combined with strong FEC, the RI-5000's VOCODER provides encrypted speech in throughput of 2400/1200/600 bps. Automatic User voice filter control selects the master voice only, thus ensuring the clear voice with little or no noise.

Strong Encryption Capability

The RI-5000's built-in COMSEC module uses 128/192/256 bits RIJNDAEL(OFB) for stream ciphering. Transmission Encryption Key (TEK) can be replaced any time with secure authentication and key agreement protocol, which is based on the Elliptic Curve Cryptosystem, most advanced public key system. With its full source program supplied, the User can customize 100% securely the encryption algorithm at his needs any moment.

ECCM communication

Additional features

Message trensmitting

Using the RI-5000's self-illuminating LCD display and Keypad, user can edit, send/receive and view text messages.

Data communication

RI-5000 can be connected to the computer through RS-232c port and send/receive files, image and video. Software program for Data transmission is provided as standard (SHIELD 5.0).

Auto-response

Recognizes automatically the incoming signal and selects the relevant mode (Data/Voice).

No Rig Modifications Needed

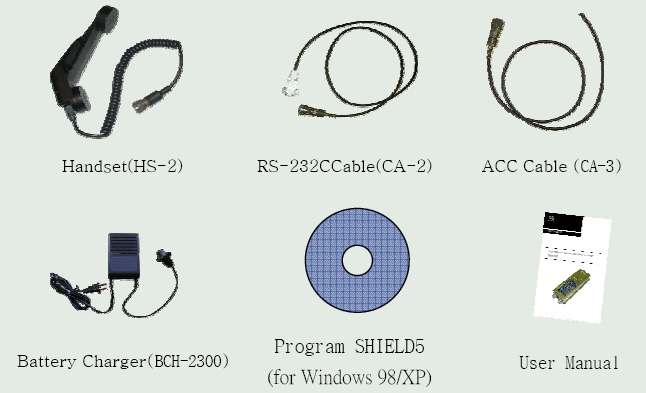

All you need to do is only connecting RI-5000 to transceiver’s microphone and speaker, using supplied cables. There is no need for internal modifications or adjustments.

Noise Suppression

Automatic User voice filter control selects the master voice only, thus ensuring the clear voice with little or no noise.

Technical specifications

Real-time encryption	Rijndael OFB
Band width	300Hz ~ 3000Hz
Key Length	128/192/256 bit
Key Agreement	Elliptic Curve 160/320 bit
TEK storage	8
Voice bit rate	2400/1200/600 bps
Modulation	Coded PSK (Serial tone), MSK
Data rate	75~2400 bps at HF band
Data mode	Simplex: FEC2 Half-Duplex: FEC2-ARQ
Display	OLED (132x64 dots)
Serial port	RS-232C
ACC Connecter	Input level: 1000mVp-p Output level: 1000mVp-p Input impedance: 10KΩ Output impedance: 4.7 KΩ
Supply Voltage	DC7.4V ±13%
Power consumption	1W
Battery Package	7.4V/1200mAh
Dimensions	208 x 68 x 32(mm)
Weight	475g
Temperature Range	-40 oC~ +70 oC
Others	Upto 3 meter in water, Vibration, Shock, Dust, Rain, Salt proof
