The Q-MAC HF-90 Manpack is a portable, instant-deployment HF SSB radio communication system, incorporating the HF-90 HF Transceiver - now available with optional frequency hopping. A detailed description of this product, together with technical specifications, is provided on a separate brochure.
This package is designed for applications where the operator requires medium to long range communications, whilst on foot. It is ideal where mobility is of paramount importance, given that it is compact, lightweight (total weight is approximately 7kg) and comfortable to carry for long periods. The HF-90 Manpack is totally independent of terrain and can be used whilst carried on the operators back, or when staked into the ground. The Q-MAC HF-90 Manpack can be easily converted to a Base Station Package, Vehicle Package or Portable Package with the addition of appropriate accessories.
The Q-MAC HF-90 HF SSB Manpackis being used worldwide in a variety of applications including; international aid projects,military/paramilitary applications,search and rescue,mineral exploration,forestry management,conservation and wildlife projects.
Package includes
HF-90 HF Transceiver - Supplied complete with speaker microphone.
TM-90 Tuner - Simple to use single-control tuner, incorporating LED tuning indicators. Operates by way of a continuously variable inductor with no moving contacts. Tuner does not require any DC power to operate, only RF power which is generated from the Q-MAC HF-90 HF SSB Transceiver. Supplied complete with coaxial connection to Q-MAC HF-90 HF SSB Transceiver and ground/earth connection.
HF Collapsible Whip Antenna - High efficiency, six section whip antenna totalling three metres in length. Provides reliable operation from 3.6 to 10MHz. Made from high-grade aluminum alloy tubing with internal braided tension chord. Black in colour. Please refer to information on the reverse of this brochure concerning “Antenna Deployment”.
Long Wire Antenna Kit - Includes 7m wire antenna, 5m counterpoise, long wire antenna adaptor (fits to Q-MAC TM-90 Tuner) and throw rope. Allows very efficient operation between 2.5 to 10MHz. Please refer to information on the reverse of this brochure concerning “Antenna Deployment”.
Rechargeable Battery - Maintenance-free, sealed lead acid gel battery 7Ah. Supplied complete with DC power cable, incorporating connector for charging devices, and battery condition monitor. Please refer to information on the reverse of this brochure concerning “Battery Use”.

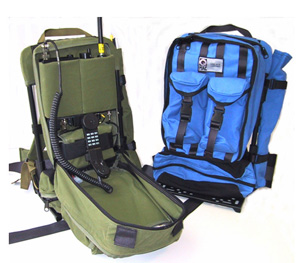

Canvas Backpack - (545h x 275w x 160d) Custom designed backpack made from water resistant canvas, with fully padded and reinforced compartments to house the Q-MAC HF-90 and its accessories. Supplied with 2 stainless steel support stakes for operating from the ground. Alternatively, the package may be supplied in a military-grade modular backpack on rugged external frame - (510h x 400w x 300d) - as an optional upgrade. Both backpack models are available in olive drab, blue or alternative colour (upon request).
Q-MAC Instruction Literature.
Additional options & accessories
The following options and accessories may be purchased separately, for use with the HF-90 Manpack:
Advanced Option – Provides Selcall facilities (Codan compatible) and field programming ability. Supplied with appropriate DTMF mic/handset.
Frequency Hopping Option – Provides complete protection against intercept and jamming (military grade). A detailed description of the Q-MAC HF-90 Frequency Hopping Option, together with technical specifications, is provided on a separate brochure.
Framed Backpack Upgrade – Replaces standard backpack with modular military-grade model (supplied on frame.)
Collapsible Whip Antenna (2-section) – 1m whip with 4 to 12.9 MHz coverage, supplied with flexible gooseneck. Suited to short-range communications.
HF Tape Whip Antenna – 1m whip with 4 to 12.9 MHz coverage, supplied with flexible gooseneck. Suited to shortrange communications in jungle/ forestry terrain.
HF Portable Broadband Antenna – End-fed broadband (requires single mounting point) with 2 to 30 MHz coverage. Supplied on shuttle for easy deployment and storage. Maximum efficiency.
AC Mains Charger – 2A limited current, 120/240V AC input, 12V DC nominal.
DC Step-Up Battery Charger – 1A current, steps up 12V DC input voltage to 14+ Volt for rapid charging via a vehicle cigarette lighter socket.
Fold-Up Solar Panel Charger – 10.8 Watt rated power. Comprises five panels that fold into a compact canvas pouch.
Hand Crank Generator – 30 Watt output at 16 Volt regulated (70RPM) c/w charge indicator. Meets Mil Std 810D. May be supplied with optional monopod. Does not fit within backpack.
CW Option & Telegraph Key – Supplied with suitable headphones if required.
Antenna deployment
The HF Collapsible Whip Antenna supplied with the HF-90 HF SSB Manpack is spring-loaded for instant deployment. The operator erects the antenna by snapping together all six sections. When not in use, the antenna is folded up and stored within the Canvas Backpack.
The HF Long Wire Antenna Kit supplied with the HF-90 HF SSB Manpack is designed to be set up once the operator is stationary. It is typically deployed by throwing over a tree at the one end and fixing to the TM-90 Tuner at the other end. It may be used at full length (7m) to achieve tune for lower frequencies or it can be folded back in half (3.5m) to achieve tune for higher frequencies. The counterpoise provided must be fitted to the TM-90 Tuner and then extended along the ground to provide adequate earthing.
Battery use
The Rechargeable Battery provided with this Package has a 7Ah capacity. This battery will provide, on average, around 10 hours of operation to the HF-90 Transceiver (based on a standard duty cycle of 10% transmit and 90% receive/standby).
