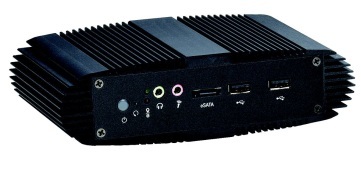

The AT-HSDM is a cost optimised radio modem for HF/VHF/UHF mobile station use. It is extremely small (10.1 x 11.5 x 2.7 cm) and by default provides E-mail, GPS position reporting and telemetry/control functionality. The AT-HSDM is a Windows 7 (TM) based platform and provides simple customisation for a range of customer specific applications. The system is simple to install and operate.

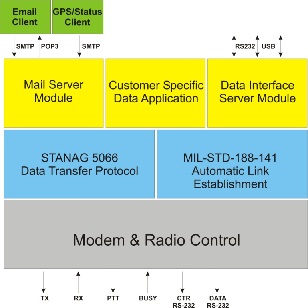

AT-HSDM Radio Modem uses leading edge miniature PC Design along with advanced digital signal processing and modular software coding to deliver a highly versatile solution for mobile data radio networks.
The AT-HSDM Radio Data Modem contains a display driver and USB Connection – this allows a Display and Keyboard/Mouse to be connected for user input and software information. With a wide range of displays and input devices available on the market – a highly customised solution can configure for all types of mobile applications. Networking functionality via WLAN and Ethernet gives a wide range of application flexibility E.g. Email and Tactical Messaging. These can interoperate with standard computer systems such as desktop and laptop PCs using the HF/VHF/UHF radio link connected to the AT-HSDM Radio Data Modem.

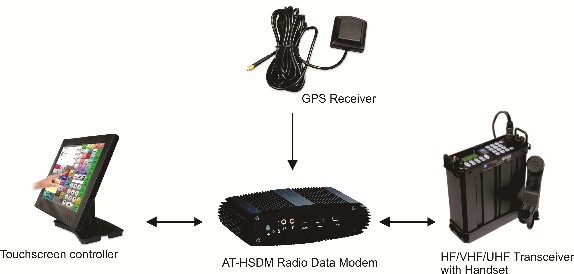

Fig: Typical AT-HSDM Configuration

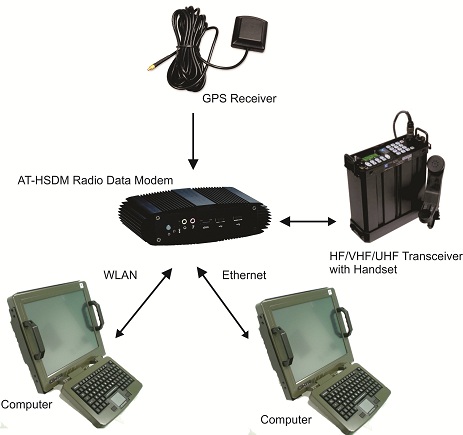

Fig: Typical AT-HSDM Networking LAN or WAN Configuration
The AT-HSDM Radio Data Modem has standard RS-232 and Ethernet ports which can be used for Telemetry and Remote Control applications over HF/VHF/UHF Links

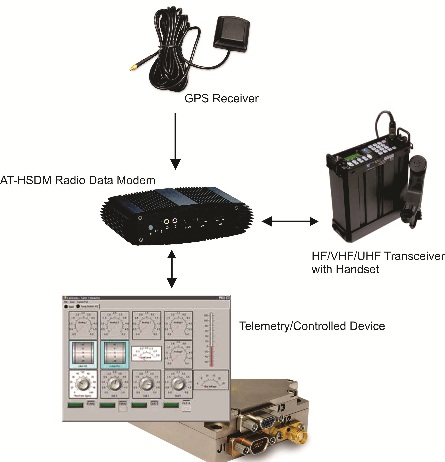

Fig: Typical AT-HSDM Telemetry Configuration
AT-OFDM (VHF/UHF) up to 100 kbit/s (gross)/ 88 kbit/s (net)
AT-OFDM (HF) up to 12.8 kbits/s (gross) 9.6 kbit/s (net)
STANAG 4285 (up to 2.4 kbit/s)
STANAG 4539 (up to 2.4 kbit/s)
MIL-STD-188-141A (ALE)
Services included
E-mail service (e-mail server included)
GPS service (GPS client included)
Data modem services (data interface server included)
Other features
Encryption AES 256 and 3DES
API for customer applications
Automatic data rate change
NATO system compliant
Data compression
External modem support
Automatic base station handover
Package includes
AT-HSDM controller
Radio interface cable (optional)
GPS receiver (optional)
AT-HSDM Radio Data Modem Hardware Specifications;
CPU
Intel Atom N270
Memory
2 GB DDR2-533
Storage
64 GB SSD disk
Data interfaces
2 x RS-232
4 x USB
Networking
1 x 1000 baseT Ethernet
WLAN
Temperature range
Operating 0 to +40°C, 0 to +90°C non-condensing
Case
100% aluminum
Die cast body
Dimensions
170 x 47 x 110mm
Weight
1200 grams
Input Power
9-24V DC single supply
Power consumption
20 W
Mounting
Wall Mount, VESA Mount, Din Rail Mount
Certifications
CE, FCC, Class A
19” Rack Mountable Versions of the AT-HSDM Radio Data Modem are available
AT-HSDM Radio Data Modem System has the following units
AT-HSDM-01 Controller Unit
The AT-HSDM-01 controller provides several interfaces (WLAN, 1xEthernet, 4xUSB, 2 x RS-232). The controller complies with industrial environmental requirements (-10-90 deg C). The software is pre-installed and configured and includes;
AT-HSDM-01 Windows 7 based Controller Unit
AT-HSDM software (STANAG server, AT-HSDM mail server, AT-HSDM GPS/data client)

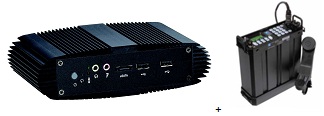

AT-HSDM-02 Mobile Station
The AT-HSDM-02 mobile station consists of a AT-HSDM-01 Controller Unit and HF/VHF/UHF radio transceiver for high-speed data use. The transceiver can also be used for normal voice communications on the HF/VHF/UHF FM channels. The AT-HSDM-02 Mobile Station includes;
AT-HSDM-01 Windows 7 based Controller Unit
HF/VHF/UHF Transceiver (Client Supplied or AT additional supply)
Cable set between Transceiver and AT-HSDM-01
AT-HSDM-03 Base Station
The AT-HSDM-03 base station connects to a fixed IP network such as the Internet or local network. The system includes the AT-HSDM Radio Data Modem, Transceiver and base station software in a integrated enclosure. The AT-HSDM-02 Mobile Station includes;
AT-HSDM-01 Windows 7 based Controller Unit
HF/VHF/UHF Transceiver
Power Supply
AT-HSDM Messenger Gateway server software (Includes connection to Ethernet and IP Network)
It is possible to integrate additional options such as battery back up and solar power for remote area applications. The core unit size of the AT-HSDM-03 is 30 x 30 x 35 cm.
AT-HSDM-04 Tracking Server
The AT-HSDM-04 Tracking Server is connected to the IP Network and provides tracking of remote AT-HSDM-02 mobile stations. The software provides information such as location, speed, fuel and other telemetry on display monitor. The system can utilise local maps or integrate with Google maps. The AT-HSDM-04 Tracking Server includes;
AT-HSDM-01 Windows 7 based Controller Unit
AT-HSDM Tracking Server Software
Interface to local maps or Google Maps
Support for 5 Mobile Stations (Expansion with extra modules is possible up to a max of 100 mobile stations
